Amplifier Module

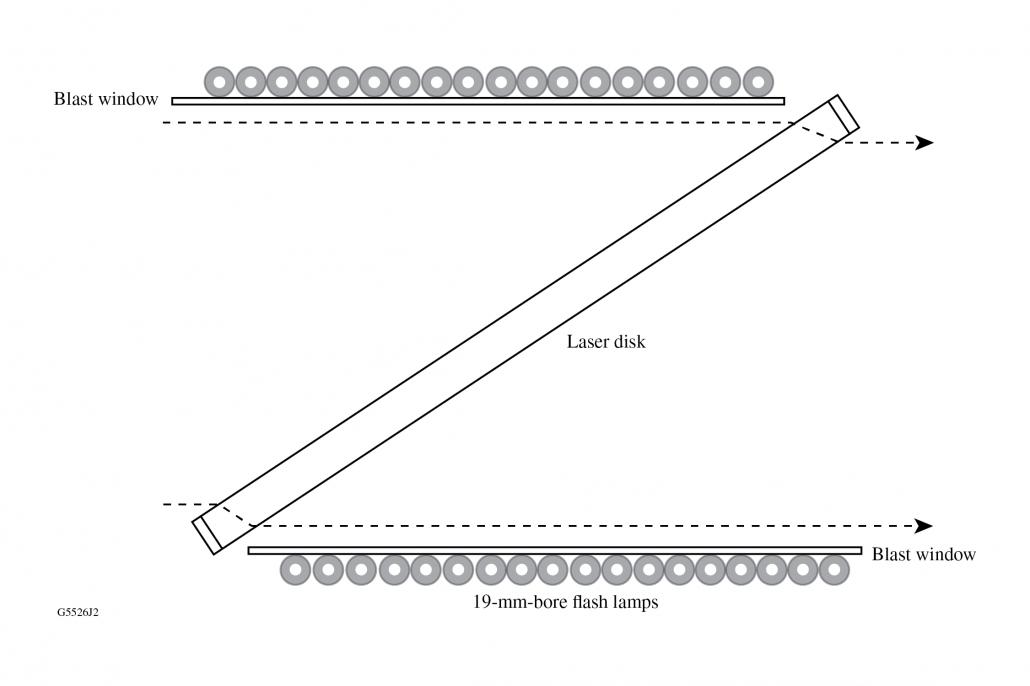

Schematic plan view of a 40-cm disk amplifier module containing a laser disk with the 19-mm-bore flash lamps. The path of the laser beam is also shown. All the flash lamps on each side of each laser disk are housed within a single pump module. A blast window in front of the flash lamps protects the laser glass in case of lamp failure.
